EMT Series Stereo Microscopes

EMT-1
EMT-2

Product Description:

The EMT range provides dual magnification by means of an objective turret changer and a wide range of accessories for life science and industrial applications.

Product Details:

Product:	Description:
EMT-1	Binocular Stereo head with turret mounted objective pairs 1X/2X, SWF10X eyepieces, eyecups, dust-cover. Head inclined 45º. Working distance 108mm.
EMT-2	Binocular Stereo head with turret mounted objective pairs 1X/3X, SWF10X eyepieces, eyecups, dust-cover. Head inclined 45º. Working distance 81mm.

View
Stands & Focusing Blocks »

View
Illumination »

‌

Need more information?

We'd love to chat about your requirements »

‌

Supplementary Eyepieces:

Product:	Description:
MA501	Eyepieces pair SWF5X.
MA502	Eyepieces pair SWF10X. Takes 25mm micrometer.
MA503	Eyepieces pair SWF15X. Takes 25mm micrometer.
MA504	Eyepieces pair SWF20X. Takes 25mm micrometer.
MA519	Eyepiece single SWF10X focusing. Mount to take 25mm micrometer.
MA520	Eyepieces pair SWF12.5X. Takes 25mm micrometer.
MA521	Eyepieces pair SWF30X.

Focusing Block:

Product:	Description:
F	Focusing block fits 20mm mounting post 55mm travel. Reach to axis 140mm. Fits universal stands or to OEM systems.	View Image
FC	Same as F but with coarse and fine focus.	View Image
FK	FK (Focusing block EMZ-8TR, 13TR for OEM and long arm stand only ) fits 20mm mounting post. Distance from centre of holder to centre of pillar 165mm.	View Image

Stands with Focusing Blocks:

Product:	Description:

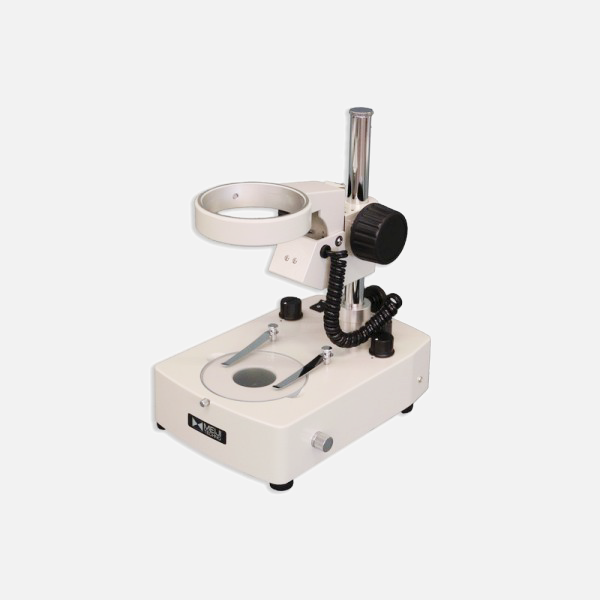

BD-LED	BD-LED is a pole type stand with LED transmitted and incident illumination. It has a rotatable mirror in the base for pseudo darkfield technique.	View Image
COLLEX	(OEM) 15cm extension column for P, PBH, PK and PKL stands.
P	Pole stand P with included focus block F. Black/white contrast plate 94mm. Stage clips.	View Image
PK	Pole stand with focus block mounted on a ergo base, black & white stage plate and stage clips.	View Image
PKL-2	Pole stand with focus block mounted on an ergo base, with integrated transmitted and incident variable LED Illumination, glass stage plate and stage clips.	View Image
PLS-1	Illuminated pole stand with focus block and incident variable LED illumination. High intensity 5W LED. Black and white stage plate 94mm. Stage clips.	View Image
PLS-2	Illuminated pole stand with focus block and incident and transmitted variable LED illumination. High intensity 5W LED’s. Glass stage plate 94mm. Stage clips	View Image

Universal Stands:

Product:	Description:
UHM-D	Universal twin arm boom stand with 20mm swivel spigot to accept F block.	View Image

Adapters:

Product:	Description:
MA553	Adapter to fit fibre,led and fluorescent ringlights on EMT-1 and EMT-2.

Mechanical and Gliding Stages:

Product:	Description:
GS10R	350mm X 350mm XY and Rotary Anti-static stage with 265mm X 265mm travel.
MA564	Graduated gliding stage with large top plate to fit P and RZ-P** stands
MA564-05	Graduated gliding stage with large top plate to fit PBH, PKL, RZT, RZBD* and RZT-LED* stands.
MA565	Ungraduated sliding mechanical stage for P & RZP stands.
MA565-05	Ungraduated gliding stage with large top plate to fit PBH, PKL, RZT, RZBD and RZT-LED stands
MA760	Mechanical Stage Adapter.
MA991	Mechanical Stage Adapter.
MT-50-50T	50x50mm X-Y measuring stage for transmitted light to take digital micrometers to fit P,PBH, PKL* RZP, RZT, RZBD and RZT-LED*

* Requires MA991 adapter
** Requires MA760 adapter

Eyepiece Micrometers (25mm Diameter):

Product:	Description:
MA506	10mm divided into 100 units, 25mm diameter
MA509	5mm divided into 100 units, 25mm diameter
MA510	10mm square into 100 parts, 1.0mm square, 25mm diameter
MA523	Cross-line reticle, 25mm diameter
MA524	10mm square into 400 parts, 0.5mm square, 25mm diameter

Trinolular CCTV Adapters:

Product:	Description:
MA151-35-03	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 0.3X lens.
MA151-35-04	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 0.45X lens.
MA151-35-15	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 1X lens.
MA151-35-20	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 0.7X lens.
MA151-35-25	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 2.5X lens.
MA151-35-30	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 1.5X lens.
MA151-35-50	CCTV ‘C’ mount adapter to fit TV camera to any 25mm outside diameter, 23.2mm internal diameter phototube. With built-in 0.5X lens.

Sputter Guards:

Product:	Description:
MA531	Protective sputter guard. For EMZ series.
MA533	Protective sputter guard. For EMT1 & EMT2.

Polarising Accessories:

Product:	Description:
MA550	Analyser in rotating mount to fit EMZ zoom head.
MA550-05	Polarising filter in mount for EMT 1 & 2 series microscopes.
MA550-15	Polarizing filter (Analyzer) for use with RZ Plan Objective.
MA667	Polariser 40mm in 94mm metal stage plate to fit transmitted light bases.
MA668	1st order red plate in metal stage plate to lock onto MA667.

Ancillaries:

Product:	Description:
MA562	Blue filter frosted 27mm diameter, OBL lamp.
MA563-05	Blue filter frosted 40mm diameter, PB or PBH base.
MA600	Rubber eyecups for stereo microscopes, pair.
MA703	Standard plastic dust cover.

Misc:

Product:	Description:
MA567	Acrylic stage plate, frosted, 94.5mm diameter.
MA568	Black and white plastic stage, 94.5mm diameter.
MA569	Glass stage plate, clear, 94.5mm diameter.
MA593	Stage clips (paired).
